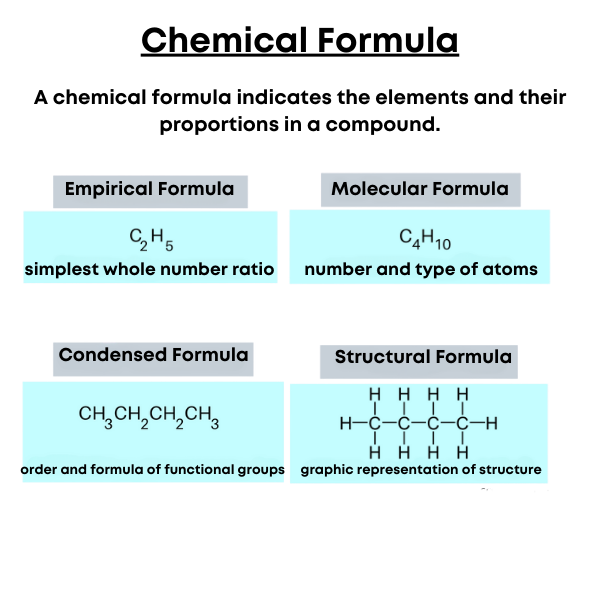

What is the simplest whole-number ratio of atoms of each element in a compound called?
Empirical formula
It shows the simplest ratio of atoms present.
What formula shows the actual number of atoms of each element in a molecule?
Molecular formula
For example, glucose has molecular formula C6H12O6.
Fill in the blank:
A formula showing the arrangement of atoms and bonds in a molecule is called the _______ formula.
structural
It indicates how atoms are connected.
True or False:
A displayed formula shows every atom and bond in a molecule.
True
All covalent bonds are shown explicitly.
What type of formula uses lines to represent carbon–carbon bonds and omits most hydrogen atoms?
Skeletal formula
Carbon atoms are implied at the ends and intersections of lines.
True or False:
Skeletal formulas normally show all hydrogen atoms attached to carbon.
False
Hydrogens attached to carbon are usually omitted.
Fill in the blank:
A family of organic compounds with the same functional group is called a _______ series.
homologous
Members differ by a repeating –CH2– unit.
What feature is common to all members of a homologous series?
Same functional group
This leads to similar chemical reactions.
True or False:
Members of a homologous series show a gradual change in physical properties.
True
For example, boiling point increases with chain length.
What naming system is used internationally for naming organic compounds?
IUPAC nomenclature
The International Union of Pure and Applied Chemistry sets the rules.
Fill in the blank:
In IUPAC naming, the longest continuous chain of carbon atoms determines the _______ name.
parent
The parent chain forms the base name of the compound.
According to A-level requirements, organic compounds should be named using chains of up to how many carbon atoms?
Six
Students must apply IUPAC rules to chains and rings up to six carbons.
What term describes the step-by-step pathway showing how reactants form products in an organic reaction?
Reaction mechanism
It shows the movement of electrons and formation/breaking of bonds.
What type of species has an unpaired electron and is involved in certain organic reactions?
Radical
Radicals are highly reactive species with a single unpaired electron.
Fill in the blank:
In radical mechanisms, the unpaired electron is represented by a _______.
dot
A dot next to the atom symbol shows the radical.
True or False:
Curly arrows are normally used to show electron movement in free-radical mechanisms.
False
Radical mechanisms usually use single dots rather than curly arrows.
What type of arrow is used to show the movement of an electron pair in many organic mechanisms?
Curly arrow
The arrow starts at the electron pair and points to where the electrons move.
True or False:
A curly arrow can start from a lone pair of electrons to show bond formation.
True
This represents donation of an electron pair to form a covalent bond.
Fill in the blank:
When a covalent bond breaks in a mechanism, the curly arrow starts from the _______.
bond
This indicates the electrons move away from that bond.
What does a curly arrow represent in an organic reaction mechanism?
Movement of an electron pair
It shows how electrons rearrange during the reaction.
True or False:
Reaction mechanisms must show the structures of all species involved in each step.
True
Each intermediate and transition step should be represented.
What must be written for each step in a free-radical mechanism besides structures?
Balanced equation
Each stage (initiation, propagation, termination) must balance atoms.
Fill in the blank:
The formation of a new covalent bond occurs when an electron _______ is shared between atoms.
pair
Curly arrows illustrate this movement of electron pairs.
Why are mechanisms useful in organic chemistry?
Explains how reactions occur.
They show the detailed sequence of bond breaking and bond forming.
