5.5 Redox & Electrode Potentials for A-Level Chemistry (OCR)

What electrode is used as the reference when measuring standard electrode potentials?

Standard hydrogen electrode

All electrode potentials are measured relative to this reference electrode.

How well did you know this?

Not at all

Perfectly

What symbol represents the standard electrode potential of a half-cell?

E°

It indicates the electrode potential measured under standard conditions.

How well did you know this?

Not at all

Perfectly

Fill in the blank:

Standard electrode potentials are measured at a temperature of _______ K.

298

Standard conditions also include 100 kPa pressure and 1.00 mol dm^-3 solutions.

How well did you know this?

Not at all

Perfectly

True or False:

Standard electrode potentials are measured with ion concentrations of 1.00 mol dm^-3.

True

This ensures all measurements are comparable.

How well did you know this?

Not at all

Perfectly

What name is given to the ordered list of standard electrode potentials?

Electrochemical series

It ranks half-cells according to their tendency to be reduced.

How well did you know this?

Not at all

Perfectly

True or False:

A more positive E° value indicates a greater tendency to gain electrons.

True

Species with more positive E° values are more easily reduced.

How well did you know this?

Not at all

Perfectly

Fill in the blank:

The maximum voltage produced by an electrochemical cell is called the _______.

EMF

EMF stands for electromotive force.

How well did you know this?

Not at all

Perfectly

How is the EMF of a cell calculated using standard electrode potentials?

E°cell = E°(reduction) − E°(oxidation)

Alternatively: E°cell = E°(right) − E°(left) from the cell diagram.

How well did you know this?

Not at all

Perfectly

True or False:

A positive EMF indicates that the redox reaction is feasible.

True

A positive E°cell suggests the reaction is thermodynamically favourable.

How well did you know this?

Not at all

Perfectly

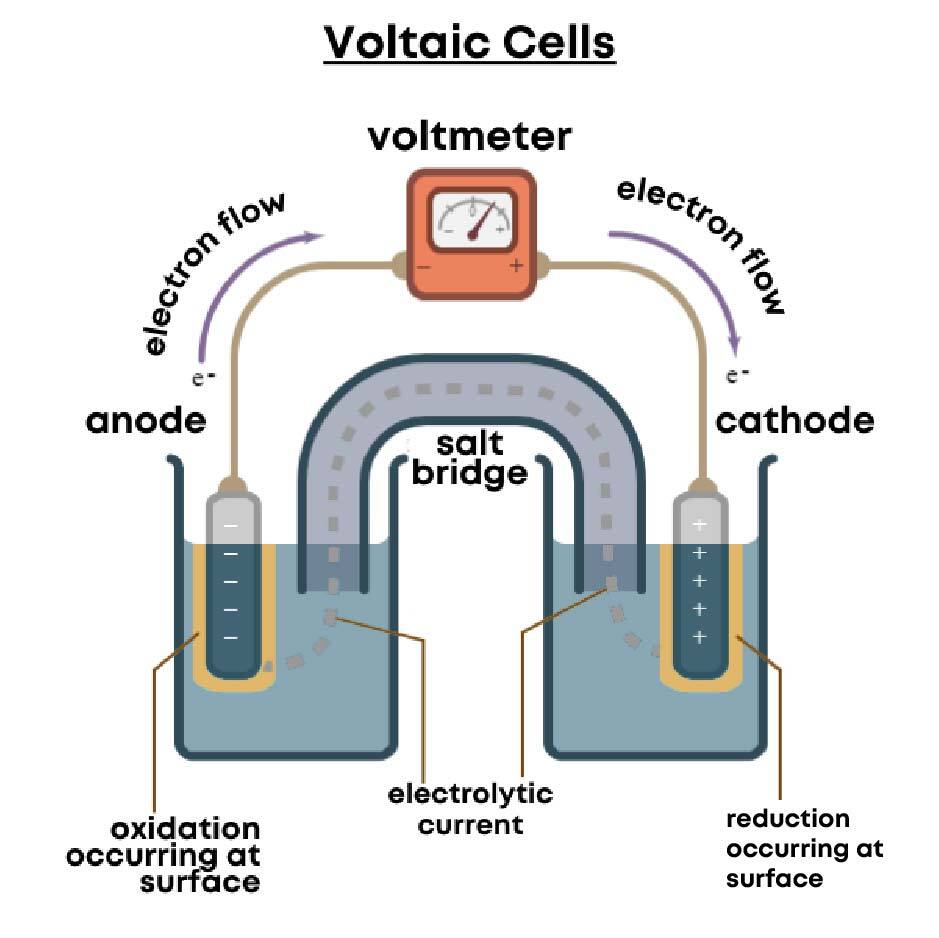

In the conventional cell representation Zn|Zn²⁺||Cu²⁺|Cu, which electrode is the negative electrode?

Zinc

Zinc is oxidised and acts as the anode.

How well did you know this?

Not at all

Perfectly

Fill in the blank:

In a conventional cell diagram, a double vertical line represents the _______ bridge.

salt

The salt bridge allows ions to move and complete the circuit.

How well did you know this?

Not at all

Perfectly

What process occurs at the anode in an electrochemical cell?

Oxidation

The anode is where electrons are released.

How well did you know this?

Not at all

Perfectly

What type of device converts chemical energy directly into electrical energy using redox reactions?

Electrochemical cell

These cells allow electron transfer through an external circuit to generate current.

How well did you know this?

Not at all

Perfectly

What type of electrochemical cell cannot be recharged once the reactants are used up?

Non-rechargeable cell

These are also called primary cells and operate via irreversible reactions.

How well did you know this?

Not at all

Perfectly

True or False:

Fuel cells must be recharged after their reactants are used up.

False

Fuel cells continuously produce electricity as long as fuel and oxidant are supplied.

How well did you know this?

Not at all

Perfectly

In a lithium cell, what process occurs at the negative electrode involving lithium atoms?

Oxidation

Lithium atoms lose electrons to form Li⁺ ions.

How well did you know this?

Not at all

Perfectly

True or False:

Give the half equation for the oxidation of lithium at the negative electrode

Li → Li⁺ + e^-.

How well did you know this?

Not at all

Perfectly

Fill in the blank:

In a hydrogen–oxygen fuel cell, hydrogen is _______ at the electrode.

oxidised

Hydrogen loses electrons to form water through reaction with oxygen.

How well did you know this?

Not at all

Perfectly

What is the overall product formed in a hydrogen–oxygen fuel cell?

Water

Hydrogen and oxygen combine electrochemically to form water.

How well did you know this?

Not at all

Perfectly

True or False:

Fuel cells generate electricity through redox reactions.

True

Oxidation and reduction occur at separate electrodes.

How well did you know this?

Not at all

Perfectly

Fill in the blank:

The movement of _______ through the external circuit generates electric current in electrode reactions.

electrons

Electrons flow from the negative electrode to the positive electrode.

How well did you know this?

Not at all

Perfectly

What advantage do hydrogen fuel cells offer compared with fossil fuel power sources?

Low emissions

The main product is water, reducing pollution compared with combustion.

How well did you know this?

Not at all

Perfectly

Give the half equation for the reduction reaction that occurs at the positive electrode of the lithium cell

Li⁺ + CoO₂ + e⁻ → Li⁺[CoO₂]⁻

Remember Lithium cobalt oxide (LiCoO₂) is the positive electrode in a lithium ion cell

How well did you know this?

Not at all

Perfectly

What is the half equation at the negative electrode in an alkaline hydrogen–oxygen fuel cell?

H₂ + 2OH⁻ → 2H₂O + 2e⁻

How well did you know this?

Not at all

Perfectly

What is the **half equation** at the **positive electrode** in an **alkaline hydrogen–oxygen fuel cell**?

O₂ + 2H₂O + 4e⁻ → 4OH⁻

What is the **overall reaction** in an **alkaline hydrogen–oxygen fuel cell**

2H₂ + O₂ → 2H₂O ## Footnote This is why the emissions are so low as when we combine the two half equations to make the overall equation. Only water is released.

Why are **fuel cells** useful for **continuous energy supply**?

They can operate continuously as long as fuel (H₂ and O₂) is supplied

What is a **major issue with hydrogen production in alkaline hydrogen-oxygen fuel cells**?

Hydrogen is often produced from fossil fuels, which releases CO₂

Why is **hydrogen storage a challenge**?

Hydrogen is highly flammable and requires high pressure or low temperatures to store

What is a key **advantage of rechargeable cells**?

They can be reused many times, reducing waste

Why are **rechargeable cells cost-effective**?

hey can be recharged, so fewer need to be bought over time

Why are **rechargeable cells better for the environment**?

Less disposal → reduced environmental pollution

What is a **disadvantage of rechargeable cells**?

They are more expensive initially

What **safety risk** is associated with **rechargeable cells**?

Risk of overheating or explosion if damaged or overcharged

What is an **advantage of non-rechargeable cells**?

They are cheap and readily available

What is the main **environmental issue** with **non-rechargeable cells**?

They must be disposed of after use, causing waste

What **electrode** is used when **no solid substance is present**?

An inert electrode (e.g. platinum)

Why is an **inert electrode** used when **no solid is present**?

To provide a surface for electron transfer without reacting

What is the **electrode potential** of the **SHE**?

0.00V

What are the **standard conditions** for the **SHE**?

Temperature = 298 K Pressure = 100 kPa (H₂ gas) [H⁺] = 1.0 mol dm⁻³

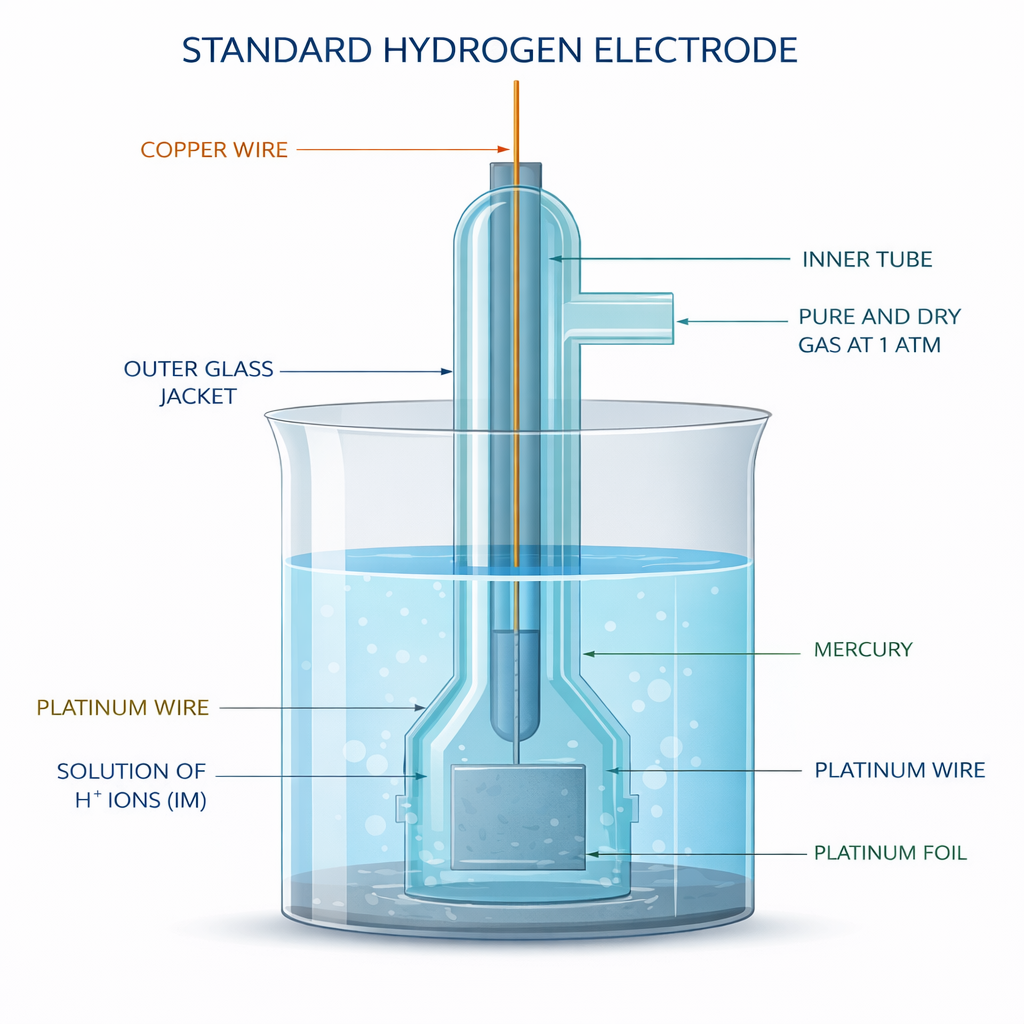

What is the **structure** of the **SHE**?

Platinum electrode in contact with H₂ gas and H⁺ solution

How is a **conventional cell representation written**?

Oxidation (anode) on the left, reduction (cathode) on the right

What does a **single vertical line ( | )** represent in a conventional cell representation?

A phase boundary (e.g. solid/liquid or liquid/gas)

What must be included when writing the conventional cell representation?

States of substances (s, aq, g) salt bridge phase boundaries most oxidised/ reduced closest to the salt bridge

How is an **inert electrode** shown in the **conventional cell representation** ?

As Pt(s) or C(s) at the appropriate end

What do **commas** represent in **conventional cell notation**?

Different species in the same phase

What type of reaction involves the **transfer of electrons** between substances?

Redox reaction ## Footnote Redox reactions involve oxidation and reduction occurring together via electron transfer.

What is the **loss of electrons** from a species called?

Oxidation ## Footnote Remember the mnemonic **OIL RIG**: Oxidation Is Loss, Reduction Is Gain.

What is the **gain of electrons** by a species called?

Reduction ## Footnote Reduction occurs when a species gains one or more electrons.

# True or False: **Oxidising agents** donate **electrons** during a redox reaction.

False ## Footnote Oxidising agents accept electrons and are themselves reduced.

What name is given to a **substance that accepts electrons** in a redox reaction?

Oxidising agent ## Footnote Because it causes another substance to be oxidised.

# True or False: A **reducing agent** donates **electrons** to another species.

True ## Footnote The reducing agent loses electrons and therefore becomes oxidised.

# Fill in the blank: The **numerical value** assigned to an atom to show **electron loss or gain** in compounds is its oxidation _\_\_\_\_\_\_.

state ## Footnote Oxidation states help track electron transfer in reactions.

What happens to the **oxidation state** of an element when it is **oxidised**?

Increases ## Footnote Losing electrons makes the oxidation state more positive.

# True or False: **Reduction** results in a **decrease in oxidation state**.

True ## Footnote Gaining electrons lowers the oxidation number.

What type of equation shows either the **oxidation** or **reduction process** separately in a redox reaction?

Half-equation ## Footnote Half-equations show electron transfer clearly.

# Fill in the blank: When combining **half-equations** to form an overall redox equation, the number of _\_\_\_\_\_\_ must be equal on both sides.

electrons ## Footnote Electrons lost in oxidation must equal electrons gained in reduction. They cancel out when the half-equations are combined, ensuring the overall equation is balanced for charge.

In an **oxidation half-equation**, are electrons on the **left** or **right** side?

Right side ## Footnote If a species is being oxidised it is releasing electrons, and anything released in a chemical equation is written on the right-hand side (products side).

In a **reduction half-equation**, are electrons on the **left** or **right** side?

Left side ## Footnote Reduction = Gain of electrons (RIG) So the species is taking in electrons, and anything that is taken in is written on the left-hand side (reactants side)

What is used to **balance oxygen atoms** in a half-equation?

Water (H₂O)

What is used to **balance hydrogen atoms** in a half equation?

Hydrogen ions (H⁺)

What is used to **balance charge** in a half-equation?

Electrons (e⁻)

What is the correct **order** for **balancing half-equations**?

Balance non-O/H atoms Balance O with H₂O Balance H with H⁺ Balance charge with e⁻

5.5 Redox & Electrode Potentials Flashcards

Predict feasibility of redox reactions using electrode potentials and electrochemical cells. (63 cards)
